iCerMax™ offers a broad range of primary, secondary and final filtration systems for bulk tanks as well as on board units, utilising the benefit of proprietary filtration technologies.

Developed in Africa, the products offered by iCerMax™ extend the economic lifecycle of engines and equipment with respect to the often harsh contamination levels facing the continent’s fuel sector.

iCerMax™ has a full range of diesel products to address all the following filtration market needs (at any flow rates, with the required cleanliness levels to ISO standards, and the sustainable removal of free and suspended water).

  • Dispensing & receiving from fuel tanks
  • On-board equipment: bakkies, tractors, harvesters, trucks & generators
  • Tank transfers
  • Tank cleaning
  • Kidney filtration
  • Mobile trailers/fuel bowsers, tankers etc.
Bulk Filtration Header Image 1
Bulk Filtration Header Image 3

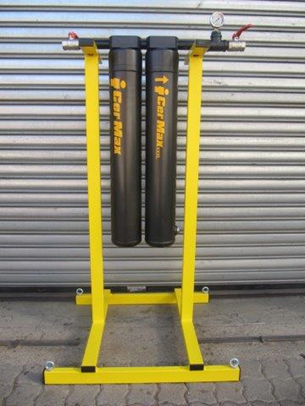

Bulk Filtration



The iCerMax Bulk Filtration product range is extensive with numerous (and customised) water and particle variants available.

  • Below is a selection of these products
  • For more information contact Soliflo

Spin On Head Options:

Standard Spin On Head
Standard Spin On Head
  • Standard head is supplied with all spin on vessels unless another head is specified when placing order
  • Standard head fits all 1 ¾ -12 UN heads - fits onto most spin on systems found in the market place
  • Need to spin off complete vessel & head in order to change out cartridge. Needs full length of vessel with head underneath

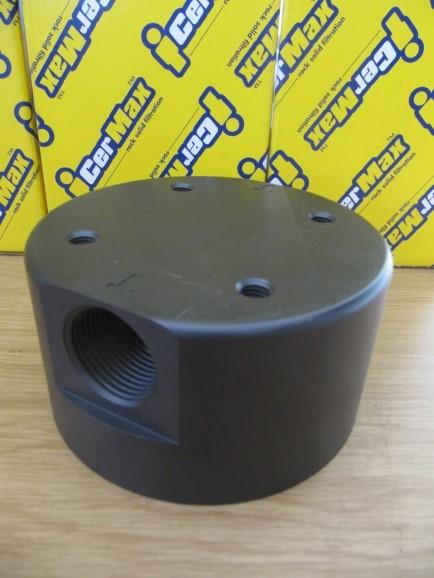

ICE 1” Head
ICE 1” Head
  • The ICE 1” head has an additional price surcharge & customers need to specify ICE 1” head when placing order
  • It does not require any additional fittings & has a 1” inlet and outlet port, can be mounted inline (steel piping) or to a flat bracket / plate using the four M10 threaded holes in the top of the head
  • Note that when using the ICE 1” head, you will need additional space under the vessel (double the vessel) in order to do cartridge change outs

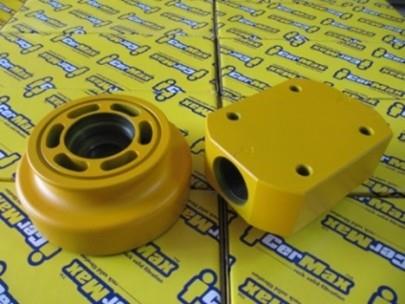

Yellow 1” Head
Yellow 1” Head
  • The yellow 1” head has an additional price surcharge & customers need to specify Yellow 1” Head when placing order
  • It has a 1” inlet and outlet port & can be mounted inline (steel piping) or to a flat bracket / plate using the four M10 threaded holes in the top of the head
  • When using this head you will need maximum 5 cm of space under the vessel in order to undertake cartridge change outs
  • Note that top half of yellow head (1” ports) stays secured to steel piping or flat mounting surface & bottom half of yellow head turns off in order to do cartridge change outs

T REX on Mobile Compressor
T REX on Mobile Compressor
T REX on Mobile Compressor 1
T REX on Mobile Compressor 2
T REX on Mobile Compressor 3

iDieselMax™ T REX: XLW Spin On Water Vessel, Thick Base, ICE 1” Head

The T REX vessel comprises an XL water vessel with sight glass on the side plus a water cartridge.

  • Can be mounted using an ICE 1” head or a 1” yellow head, depending on how much space is allowed
  • Water vessel has a thicker base at the bottom with two ½” ports blanked off
  • ½” ports are there for a drain tap, water sensor etc.
  • Note: the spigot shaft does not have pick up holes on the lower third of the shaft which gives extra place to accumulate water before draining
  • T REX can be mounted to vehicles or larger compressors

Technical Data: T Rex - Water Removal Filter with Thicker Base

Description: T REX is the latest on-board pre-filtration for all types of equipment

  • Aimed at addressing the worst possible contaminated fuels, it was originally designed for a 300-truck fleet in Papua New Guinea where water in fuel is a major issue all over the country & a leading cause of most of their engine failures
  • iCerMax adapted a bulk dispensing filter to an on-board spin on filter to ensure capacity & efficiency of equipment

The T Rex offers:

  • Two-stage filtration for highly contaminated fuels
  • Permanent water coalesce which removes both free & suspended water
  • Particle pre-filtration using 10 micron cellulose paper which extends the capacity and efficiency of final filtration of OEM filters
  • Large internal water trap with side glass indicator
  • An optional drain valve or water sensor can be installed to bottom of vessel
  • Economical as only the internal cartridge needs to be replaced
  • Massive capacity and efficiency
  • Flow rate of 120 litres per minute

Part No:

Housing with Sight Glass: ICEXLW/HOUSING
Water Particle Cartridge: ICEXLW/CARTRIDGE
Micron Rating: Commercial
Target Cleanliness: 10 micron pre-filtration & removes free and suspended water
Housing Length: 460 mm
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Water cartridge removes both free & suspended water
  • Water cartridge has a stainless steel mesh medium which is self-cleaning & not affected by water thus maintaining coalescing
  • Suspended water is crucial to remove, as Tier 4 and Euro 5 advanced injector systems fail on the smallest amounts of water in suspension
  • Allows visual physical inspection of filtration medium’s integrity, see colour/quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank
  • Sight glass option to verify physical fuel colour & identity water
Water Cartridge: Stainless steel mesh with 10 micron pleated paper

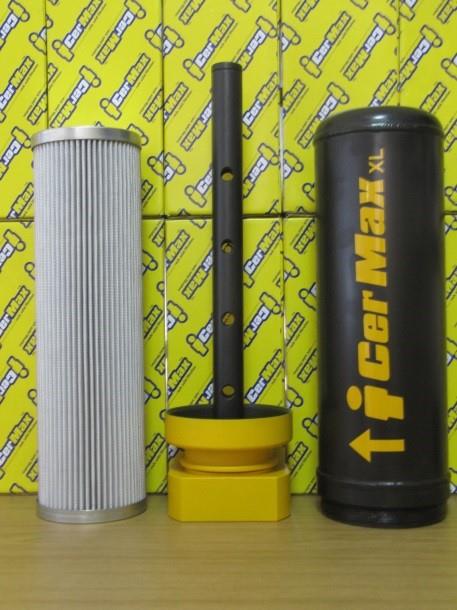

iDieselMax™ - XLW Water Unit with Yellow 1” Head
iDieselMax™ - XLW Water Unit with Yellow 1” Head

iDieselMax™ - XLW Water Unit with Yellow 1” Head

Technical Data: Standard XL Water Unit with Spin On Head

Description: iCerMax™ Reusable Spin-On Housing with Yellow 1” Spin On Head

  • Can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts on to a flat plate
  • Only replace inner cartridge, not the entire spin on filter
  • Water cartridge comprises a stainless steel mesh & 10 micron pleated paper (standard fitment)
  • Stainless steel mesh is self-cleaning & a permanent water coalesce for free and suspended water
  • Pleated paper has multi pleats which ensure a higher efficiency with an extremely large dirt holding capacity - 47% more filtration medium
Part No: Housing with sight glass ICEXLW/HOUSING
Part No: Water particle cartridge ICEXLW/CARTRIDGE
Micron Rating: Commercial
Target Cleanliness: Removes free & suspended water
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports (1” NPT): 25 mm
Housing Length: 475 mm (including head)
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Water cartridge removes both free & suspended water
  • Water cartridge has a stainless steel mesh medium which is self-cleaning & not affected by water, thus maintaining coalescing
  • Suspended water is crucial to remove, as Tier 4 & Euro 5 advanced injector systems fail on the smallest amounts of water in suspension
  • Allows visual physical inspection of filtration medium’s integrity, see colour/quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank
  • Sight glass option to verify physical fuel colour & identity water
Water Cartridge: Stainless steel mesh with 10 micron pleated paper

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XLW Water Unit with ICE 1” Head
iDieselMax™ - XLW Water Unit with ICE 1” Head

iDieselMax™ - XLW Water Unit with ICE 1” Head

Technical Data: Standard XL Water Unit with Spin On Head

Description: iCerMax™ Reusable Spin-On Housing with ICE 1” Head

  • Can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts on to a flat plate
  • Only replace inner cartridge, not the entire spin on filter
  • Water cartridge comprises a stainless steel mesh & 10 micron pleated paper (standard fitment)
  • Stainless steel mesh is self-cleaning & a permanent water coalesce for free and suspended water
  • Pleated paper has multi pleats which ensure a higher efficiency with an extremely large dirt holding capacity - 47% more filtration medium
Part No: Housing with sight glass ICEXLW/HOUSING
Part No: Water particle cartridge ICEXLW/CARTRIDGE
Micron Rating: Commercial
Target Cleanliness: Removes free & suspended water
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports (1” NPT): 25 mm
Housing Length: 475 mm (including head)
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Water cartridge removes both free & suspended water
  • Water cartridge has a stainless steel mesh medium which is self-cleaning & not affected by water, thus maintaining coalescing
  • Suspended water is crucial to remove, as Tier 4 & Euro 5 advanced injector systems fail on the smallest amounts of water in suspension
  • Allows visual physical inspection of filtration medium’s integrity, see colour/quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank
  • Sight glass option to verify physical fuel colour & identity water
Water Cartridge: Stainless steel mesh with 10 micron pleated paper

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XLS Strainer + ICE 1” Head
iDieselMax™ - XLS Strainer + ICE 1” Head

iDieselMax™ - XLS Strainer + ICE 1” Head

Technical Data: Standard XLS Water Unit with Strainer

Description: iCerMax™ Reusable Spin On Housing with ICE 1” Head

  • Head can be mounted inline (galvanised steel piping by using the four M10 threaded holes in the top of the head - mounts onto flat plate
  • Only replace inner filtration cartridge, not the entire spin on filter
  • Strainer is a 150 micron pleated mesh
  • Strainer is used to capture all the large particles going through the system & to protect pumps and expensive machinery down the line
  • Strainer has multi pleats which ensure a higher efficiency with an extremely large dirt holding capacity
Part No: Housing with sight glass ICEXLS/HOUSING
Part No: 150 micron strainer: ICEXLS/150STRAINER
Micron Rating: Commercial
Target Cleanliness: Removes large particles
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports (1” NPT): 25 mm
Housing Length: 445 mm (including head)
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Strainer prevents large objects from going through the system & damaging pumps or expensive equipment
  • Allows visual physical inspection of filtration medium’s integrity, see colour / quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank by using sight glass on side of vessel
  • Strainer: 150 micron stainless steel pleated mesh
  • Need full length of vessel underneath vessel when changing out cartridge

Ideal Applications:

  • Protect pumps & expensive equipment
  • Pre-filtration for fungal and algae in stationary bulk tanks

iDieselMax™ - XLW Water Filter with Spin On Head
iDieselMax™ - XLW Water Filter with Spin On Head

iDieselMax™ - XLW Water Filter with Spin On Head

Technical Data: Standard XL Water Unit with Spin On Head

Description: iCerMax™ Reusable Spin-On Housing

  • Fits all 1 ¾-12 UN heads (single, dual & manifolds)
  • Only replace inner cartridge, not the entire spin-on filter
  • Water cartridge comprises a stainless steel mesh & 10 micron pleated paper (standard fitment)
  • Stainless steel mesh is self-cleaning & a permanent water coalesce for free and suspended water
  • Pleated paper has multi pleats which ensure a higher efficiency with an extremely large dirt holding capacity - 47% more filtration medium
Part No: Housing with sight glass ICEXLW/HOUSING
Part No: Water particle cartridge ICEXLW/CARTRIDGE
Micron Rating: Commercial
Target Cleanliness: Removes free & suspended water
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports (1” NPT): 25 mm
Housing Length: 435 mm (including head)
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Water cartridge removes both free & suspended water
  • Water cartridge has a stainless steel mesh medium which is self-cleaning and not affected by water, thus maintaining coalescing
  • Suspended water is crucial to remove, as Tier 4 & Euro 5 advanced injector systems fail on the smallest amounts of water in suspension
  • Allows visual physical inspection of filtration medium’s integrity, see colour/quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank
  • Sight glass option to verify physical fuel colour & identity water
Water Cartridge: Stainless steel mesh with 10 micron pleated paper

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning

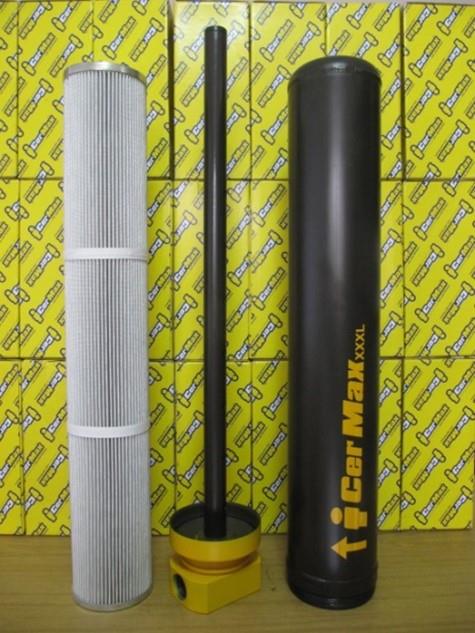

XXXLW - Water Filter with Yellow 1” Head
XXXLW - Water Filter with Yellow 1” Head

iDieselMax™ - XXXLW - Water Filter with Yellow 1” Head

Technical Data: Extra Long Water Removal Filter

Description:

Note: XXXL is double the length of the standard XL filter

  • XXXL has reusable spin-on housing with yellow 1” heads. Yellow head can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts on to flat surface
  • Flow indicator arrows stamped on top of head - need 40 mm of space below vessel for cartridge change out
  • Water removal cartridge consists of a stainless steel mesh & 10 micron pleated paper (standard fitment)
  • Stainless steel mesh is self-cleaning and is a permanent water coalesce for free & suspended water
  • Pleated paper has multi-pleats which ensure a higher efficiency & an extremely large dirt holding capacity

Part No:-

  • Housing: ICEXXXLW/HOUSING
  • Water Particle Cartridge: ICEXXXLW/CARTRIDGE
Micron Rating: Commercial
Target Cleanliness: Removes free & suspended water
Housing Length: 760 mm
Housing Outer Diameter: 130 mm
Target Cartridge Length: 705 mm
Diesel Volume: 8.5 litres

Added Benefits:

  • Water cartridge removes both free & suspended water
  • Water cartridge has a stainless steel mesh medium which is self-cleaning & not affected by water, thus maintaining coalescing
  • Suspended water is crucial to remove, as Tier 4 and Euro 5 advanced injector systems fail on the smallest amounts of water in suspension
  • Allows visual physical inspection of filtration medium’s integrity, see colour & quality of fuel from supplier, allowing inspection for any traces of algae or bacteria from bulk tank
  • Sight glass option to verify physical fuel colour and identity water
Water Cartridge: Stainless steel mesh with 10 micron pleated paper

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XLP Particle Unit with Yellow 1” Head
iDieselMax™ - XLP Particle Unit with Yellow 1” Head

iDieselMax™ - XLP Particle Unit with Yellow 1” Head

Technical Data: Standard Particle Unit with Yellow 1” Head

Description: iCerMax™ Reusable Spin-On Housing with Yellow 1” Head

  • Yellow head can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts onto flat plate
  • Flow arrow indicator arrows stamped on top of head
  • Only replace inner filtration cartridge, not the entire spin-on filter
  • Yellow head allows easy, quick cartridge change outs - requires 40 mm of space under housing for cartridge change out - spin off/on
  • Cartridge has 47% more filtration medium, higher efficiency & dirt holding capacity compared to other spin on filters
Part No: Housing ICEXLP/HOUSING
Part No: Dirt particle cartridge: ICEXLP/CARTRIDGE
Micron Rating: Commercial
Target ISO Cleanliness: ISO 14/13/11
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports: 25 mm
Housing Length: 475 mm
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Lower material dispensing costs of used cartridge - only 0.92 kg compared to 2.55 kg toxic hazard disposal rates saving of 1.43 kg - also crush & incinerate cartridge
  • Environmentally friendly, less toxic waste, lower shipping costs
  • Allows physical inspection of filtration media on change outs

Particle Cartridge:

Utilises 4 micron multi-layered fully synthetic filtration medium.
NOTE: Only requires 40 mm space under vessel for cartridge change outs

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XLP Particle Unit with ICE 1” Head
iDieselMax™ - XLP Particle Unit with ICE 1” Head

iDieselMax™ - XLP Particle Unit with ICE 1” Head

Technical Data: Standard Particle Unit with Spin On Head

Description: iCerMax™ Reusable Spin-On Housing with ICE 1” Head

  • Head can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts onto flat plate
  • Only replace inner filtration cartridge, not the entire spin-on filter
  • Dirt particle cartridge comprises 3 micron multi-layered fully synthetic medium
  • Cartridge has 47% more filtration medium, higher efficiency & dirt holding capacity compared to other spin on filters
Part No: Housing ICEXLP/HOUSING
Part No: Dirt particle cartridge: ICEXLP/CARTRIDGE
Micron Rating: Commercial
Target ISO Cleanliness: ISO 14/13/11
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports: 25 mm
Housing Length including head 445 mm
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Lower material dispensing costs of used cartridge - only 0.92 kg compared to 2.55 kg toxic hazard disposal rates saving of 1.43 kg - also crush & incinerate cartridge
  • Environmentally friendly, less toxic waste, lower shipping costs
  • Allows physical inspection of filtration media on change outs

Particle Cartridge:

  • Utilises one multi-layered fully synthetic medium
  • Needs full length of vessel underneath vessel when changing cartridge

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XLP Particle Unit with Spin On Head
iDieselMax™ - XLP Particle Unit with Spin On Head

iDieselMax™ - XLP Particle Unit with Spin On Head

Technical Data: Standard Particle Unit with Spin On Head

Description: iCerMax™ Reusable Spin-On Housing

  • Fits all 1 ¾-12 UN heads (single, dual and manifolds)
  • Only replace inner filtration cartridge, not the entire spin-on filter
  • Dirt particle cartridge comprises 4 micron multi-layered fully synthetic medium
  • Cartridge has 40% more filtration medium, higher efficiency & dirt holding capacity
Part No: Housing ICEXLP/HOUSING
Part No: Dirt particle cartridge: ICEXLP/CARTRIDGE
Micron Rating: Commercial
Target ISO Cleanliness: ISO 14/13/11
Flow Rate: Maximum 120 litres/min
Inlet / Outlet Ports: 25 mm
Housing Length: 435 mm (including head)
Housing Outer Diameter: 130 mm
Cartridge Length: 380 mm
Diesel Volume: 4.5 litres

Added Benefits:

  • Lower material dispensing costs of used cartridge - only 0.92 kg compared to 2.55 kg toxic hazard disposal rates saving of 1.43 kg - also crush and incinerate cartridge
  • Environmentally friendly, less toxic waste, lower shipping costs
  • Allows physical inspection of filtration media on change outs

Particle Cartridge:

Utilises one 4 micron multi-layered fully synthetic medium

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XXXLP - Particle Filter with Yellow 1” Head
iDieselMax™ - XXXLP - Particle Filter with Yellow 1” Head

iDieselMax™ - XXXLP - Particle Filter with Yellow 1” Head

Technical Data: Extra Long Particle Removal Filter

Description: iCerMax™ Reusable Spin-On Housing with Yellow 1” Head

  • Yellow head can be mounted inline (galvanised steel piping) or by using the four M10 holes in the top of the head - mounts on to flat surface
  • Flow indicator arrows stamped on top of head
  • Only replace inner filtration cartridge, not the entire spin-on filter
  • Dirt particle cartridge consists of 4 micron multi-layered fully synthetic medium
  • Cartridge has 200% more surface area - 3:1
  • Higher efficiency & higher dirt holding capacity
  • Extended service life due to larger surface area
Part No: Housing ICEXXXLP/HOUSING
Part No: Dirt Particle Cartridge ICEXXXLP/CARTRIDGE
Micron Rating: 4 microns
Target ISO Cleanliness: ISO 14/13/11
Housing Length: 760 mm
Housing Outer Diameter: 130 mm
Cartridge Length: 705 mm
Diesel Volume: 8.5 litres

Added Benefits:

  • Lower material dispensing costs of used cartridge
  • Toxic hazard disposal rates savings
  • Can crush and incinerate cartridge
  • Environmentally friendly, less toxic waste
  • Less shipping costs
  • Allows physical inspection of filtration media on change outs

Particle Cartridge:

Utilises one multi-layered fully synthetic medium

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets, self-bunded tanks & tank cleaning


iDieselMax™ - XL Combo + ICE 1” Head
iDieselMax™ - XL Combo + ICE 1” Head
iDieselMax™ - XL Combo + ICE 1” Head

iDieselMax™ - XL Combo + ICE 1” Head

Technical Data: Standard Particle Unit

1st phase is water filtration - free & suspended water = sustainability
2nd phase is particle filtration - 10 micron cellulose paper
3rd phase is particle filtration - 4 micron multi-layered synthetic medium

XL combo consists of two spin-on vessels, a XL water/particle vessel with sight glass (water detection/diesel quality inspection) & a XL particle vessel with a pressure gauge & two ball valves (inlet/outlet) mounted on a skid.

  • Both XL vessels are fitted with the ICE 1” heads. Both inlet & outlet ports of the ICE head are 1”
  • Note that both XL cartridges are replaceable. Spin-on housings are a once-off purchase as they are reusable
  • Skid is powder-coated & has 4 securing lugs which can be used when transporting or to secure on site
  • Cartridge has 47% more filtration medium, higher efficiency & dirt holding capacity than market
Part No: XL COMBO - ICE 1” HEAD
Micron Rating: Pre-filtration - 10 micron
Final filtration - 4 micron
Flow Rate: Recommended flow rate with 1” pipe - 120 litres per min
Target ISO Cleanliness: ISO 14/13/11
Combo Skid Length: 600 mm
Combo Skid Width: 450 mm
Combo Height: 960 mm
Diesel Volume: 9 litres (both vessels)

Part Numbers for Cartridges:-

Water/Particle Cartridge: ICEXLW/CARTRIDGE
Water/particle cartridge consists of resin-coated stainless steel mesh & 10 micron pleated paper - removes free and suspended water

Particle Cartridge:ICEXLP/CARTRIDGE
Particle cartridge consists of 4 micron multi-layered fully synthetic medium - removes particles from diesel

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets & self-bunded tanks


iDieselMax™ - XXXL Combo + ICE 1” Head
iDieselMax™ - XXXL Combo + ICE 1” Head
iDieselMax™ - XXXL Combo + ICE 1” Head

iDieselMax™ - XXXL Combo + ICE 1” Head

Technical Data: Standard Unit

Description: iCerMax™ XXXL Combo System is a 3-phase filtration system

1st phase is water filtration - free & suspended water = sustainability
2nd phase is particle filtration - 10 micron cellulose paper
3rd phase is particle filtration - 4 micron multi-layered synthetic medium

XXXL combo consists of two spin on vessels, a XXXL water/particle vessel with sight glass (water detection/diesel quality inspection) & a XXXL particle vessel with a pressure gauge & two ball valves (inlet/outlet) mounted on a skid.

  • Both XXXL vessels are fitted with the ICE 1” heads
  • Both inlet and outlet ports of the ICE head are 1”
  • Note that both XXXL cartridges are replaceable - spin on housings are a once-off purchase as they are reusable
  • Skid is powder-coated & has 4 securing lugs which can be used when transporting, or to secure on site
  • Cartridge has 176% more filtration medium, higher efficiency & dirt holding capacity than market
Part No: XXXL COMBO - ICE 1” HEAD
Micron Rating: Pre-filtration - 10 micron
Final filtration - 4 micron
Flow Rate: Recommended flow rate with 1” pipe - 120 litres per min
Target ISO Cleanliness: ISO 14/13/11
Combo Skid Length: 700 mm
Combo Skid Width: 600 mm
Combo Height: 1 350 mm
Diesel Volume: 17 litres (both vessels)

Part Numbers for Cartridges:-

Water/Particle Cartridge No: ICEXXXLW/CARTRIDGE
Water/particle cartridge consists of resin-coated stainless steel mesh & 10 micron pleated paper, removes free and suspended water

Particle Cartridge No: ICEXXXLP/CARTRIDGE
Particle cartridge consists of 4 micron multi-layered fully synthetic medium, removes particles from diesel

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets & self-bunded tanks


iDieselMax™ - XXL Combo + ICE 1” Yellow Heads
iDieselMax™ - XXL Combo + ICE 1” Yellow Heads

iDieselMax™ - XXL Combo + ICE 1” Yellow Heads

Technical Data: Standard Particle Unit

Description: iCerMax™ XXL Combo System is a 3-phase filtration system

1st phase is water filtration - free and suspended water = sustainability
2nd phase is particle filtration - 10 micron cellulose paper
3rd phase is particle filtration - 4 micron multi-layered synthetic medium

  • XXL Combo consists of two spin-on vessels, a XXL water/particle vessel with sight glass (water detection/diesel quality inspection) & a XXL particle vessel with a pressure gauge & two ball valves (inlet/outlet) mounted on a skid.
  • Both XXL vessels are fitted with the ICE 1” yellow heads
  • Both inlet and outlet ports of the ICE head are 1”
  • Both XXL cartridges are replaceable
  • Spin-on housings are a once-off purchase as they are reusable
  • Skid is powder-coated & has 4 securing lugs which can be used when transporting or to secure on site
  • Cartridge has 98% more filtration medium, higher efficiency and dirt holding capacity than market
Part No: XXL COMBO - ICE 1” YELLOW HEAD
Micron Rating: Pre-filtration - 10 micron
Final filtration - 4 micron
Flow Rate: Recommended flow rate with 1” pipe - 120 litres per min
Target ISO Cleanliness: ISO 14/13/11
Combo Skid Length: 630 mm
Combo Skid Width: 500 mm
Combo Height: 980 mm
Diesel Volume: 12 litres (both vessels)

Part Numbers for Cartridges:-

Water/Particle Cartridge: ICEXXLW/CARTRIDGE
Water/particle cartridge consists of resin-coated stainless steel mesh & 10 micron pleated paper - removes free & suspended water

Particle Cartridge: ICEXXLP/CARTRIDGE
Particle cartridge consists of 4 micron multi-layered fully synthetic medium - removes particles from diesel

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service truck & mobile bowsers, gensets & self-bunded tanks


iDieselMax™ - XXXL Combo + ICE 1” Yellow Heads
iDieselMax™ - XXXL Combo + ICE 1” Yellow Heads

iDieselMax™ - XXXL Combo + ICE 1” Yellow Heads

Technical Data: Standard Unit

Description: iCerMax™ XXXL Combo System is a 3-phase filtration system

1st phase is water filtration - free & suspended water = sustainability
2nd phase is particle filtration - 10 micron cellulose paper
3rd phase is particle filtration - 4 micron multi-layered synthetic medium

XXXL combo consists of two spin on vessels, a XXXL water/particle vessel with sight glass (water detection/diesel quality inspection) & a XXXL particle vessel with a pressure gauge & two ball valves (inlet/outlet) mounted on a skid.

  • Both XXXL vessels are secured using the ICE 1” yellow heads
  • Both inlet and outlet ports of the ICE head are 1”
  • Note that both XXXL cartridges are replaceable. Spin on housings are a once-off purchase as they are reusable
  • Skid is powder-coated and has 4 securing lugs which can be used when transporting, or to secure on site
  • Cartridge has 176% more filtration medium, higher efficiency & dirt holding capacity than market
Part No: XXXL COMBO - ICE 1” YELLOW HEAD
Micron Rating: Pre-filtration - 10 micron
Final filtration - 4 micron
Flow Rate: Recommended flow rate with 1” pipe - 120 litres per min
Target ISO Cleanliness: ISO 14/13/11
Combo Skid Length: 700 mm
Combo Skid Width: 600 mm
Combo Height: 1 350 mm
Diesel Volume: 17 litres (both vessels)

Part Numbers for Cartridges:-

Water/Particle Cartridge No: ICEXXXLW/CARTRIDGE
Water/particle cartridge consists of resin-coated stainless steel mesh & 10 micron pleated paper, removes free and suspended water

Particle Cartridge No: ICEXXXLP/CARTRIDGE
Particle cartridge consists of 4 micron multi-layered fully synthetic medium, removes particles from diesel

Ideal Applications:

Bulk tank filtration, kerbside pumps, tanktainers, service trucks & mobile bowsers, gensets & self-bunded tanks


ICerMax™ D4 Combo Skid (3A iAquaMax™+ Bag Filter)
ICerMax™ D4 Combo Skid (3A iAquaMax™+ Bag Filter)

ICerMax™ D4 Combo Skid (3A iAquaMax™+ Bag Filter)

Technical Data: Standard Unit

Description: iCerMax™ D4 Combo Skid consisting of a bag filter vessel with a double layer (100/10 micron) guff bag - standard fitment

  • 3A iAquaMax™ vessel with water cartridge & highly visible water trap & manual drain
  • Easily connected with one inlet & one outlet port
Part No: IXFG - D4 COMBO
Maximum Flow Rate: 200 litres per min
Recommended Flow Rate: 100 to 150 litres per min
Micron Rating:-
3A iAqua Cartridge: 10 micron
Bag Filter Vessel: Variable on bag option
Target ISO Cleanliness: ISO 18/16/13 or better
Diesel Volume: 69 litres
Mass Volume: 159 kg
Mass Empty: 108 kg
Height: 1 700 mm
Length/Width: 1 020 mm x 310 mm
Port Size: 50 mm
Port size can be reduced
Valves: 2
Diesel Filter Vessel:-
Maximum Operating Pressure: 4 bar
Pressure Tested to Maximum: 4 bar
Gauges: 3
Clean Pressure Drop: 0.2 bar
Mini Mess Sample: 2
Ideal for bleeding vessel or fuel sampling

Elements:

Utilises one 1A surface water separation coalescer cartridge, permanent resin-coated stainless steel screen with 10 micron cellulose paper media & one double layer guff bag - standard fitment

Optional:

  • iSo-SpecSure™ cartridge consists of 4 micron fibre glass fully synthetic medium which ensures ISO 14/13/11 or better
  • Comprises three different filtration mediums in one filter ensuring adherence to multi-depth filtration

3M Triple Steel Vessel
3M Triple Steel Vessel

3M Triple Steel Vessel

Technical Data: Standard Unit

Description: iCerMax™ 3M Triple Steel Vessel with 1M paper/synthetic cartridges

Highly versatile, easy installation & low maintenance
Part No: IXFG - 3M
Maximum Flow Rate: 160 litres per min
Recommended Flow Rate: 105 to 150 litres per min
Micron Rating:-
iSo-SpecSure™ Cartridge: 2 micron
Ideal for removing all forms of particle contamination
Target ISO Cleanliness: ISO 14/13/11 or better
Diesel Volume: 37 litres
Mass Volume: 76 kg
Mass Empty: 44 kg
Height:-
Without stand: 1 430 mm
With stand: 1 180 mm
Note: Stand is optional as vessel can be secured using four holes in base plate
Width: 350mm x 440mm
Port Size: 40 mm
Valves: 2
Diesel Filter Vessel:-
Max Operating Pressure: 4 bar
Pressure Tested to Max: 4 bar
Gauges: 2
Clean Pressure Drop: 0.2 bar
Mini Mess: 2
Ideal for bleeding system or fuel sampling
Element: Utilises three 1M iSo-SpecSure™ cartridges

7M Single Steel Vessel
7M Single Steel Vessel

7M Single Steel Vessel

Technical Data: Standard Unit

Description: iCerMax™ 7M Steel Vessel with 1M paper cartridges

Highly versatile, easy installation & low maintenance
Part No: IXFG - 7M
Maximum Flow Rate: 160 litres per min
Recommended Flow Rate: 120 to 150 litres per min
Micron Rating:
iSo-SpecSure™ cartridge: 2 micron
Ideal for removing all forms of particle contamination
Target ISO Cleanliness: ISO 14/13/11 or better
Diesel Volume: 101 litres
Mass Volume: 179 kg
Mass Empty: 93 kg
Height: 1 200 mm
Note: 7M vessel can be securely bolted using four holes in base plate
Width/Length: 490 mm x 630 mm
Port Size: 40 mm
Valves: 2
Diesel Filter Vessel:-
Maximum Operating Pressure: 4 bar
Pressure Tested to Maximum: 4 bar
Gauges: 2
Clean Pressure Drop: 0.2 bar
Mini Mess: 2
Ideal for bleeding vessel or for taking fuel samples
Elements: Utilises seven 1M iSo-SpecSure™ cartridges

7M Steel Vessels x 2 on Skid
7M Steel Vessels x 2 on Skid

7M Steel Vessels x 2 on Skid

Technical Data: Standard Unit

Description: iCerMax™ 7M Steel Vessels x 2 mounted on skid consisting of 7 x 1M paper/synthetic cartridges per vessel

Part No: IXFG - 06 COMBO
Maximum Flow Rate: 320 litres per min
Recommended Flow Rate: 240 to 300 litres per min
Micron Rating:-
iSo-SpecSure™ cartridge: 2 micron
Ideal for removing all forms of particle contamination
Target ISO Cleanliness: ISO 14/13/11 or better
Diesel Volume: 206 litres
Mass Volume: 368 kg
Mass Empty: 196 kg
Height: 1 360 mm
Length/Width: 1 130 mm x 520 mm
Port Size: 50 mm
Valves: None
Diesel Filter Vessel:-
Maximum Operating Pressure: 4 bar
Pressure Tested to Maximum: 4 bar
Gauges: 4
Clean Pressure Drop: 0.2 bar
Mini Mess: 4
Ideal for bleeding vessel or for fuel sampling
Elements: Utilises 7 x 1M iSo-SpecSure™ paper/synthetic cartridges per vessel (total 14 cartridges)

3A iAquaMax™ Water Separation Coalescer Unit
3A iAquaMax™ Water Separation Coalescer Unit

3A iAquaMax™ Water Separation Coalescer Unit

Technical Data: Standard Unit

Part No: IXIA - 3A
Maximum Flow Rate: 160 litres per min
Recommended Flow Rate: 105 to 150 litres per min
Micron Rating: 10 micron
• Removes free water & water in suspension • Surpasses both EN590 and SANS 342:2014 requirements
Diesel Volume: 41 litres
Mass Volume: 86 kg
Mass Empty: 63 kg
Height: 1 560 mm
Width: 480 mm x 300 mm
Port Size: 40 mm
Valves: 1
Diesel Pressure Vessel:-
Maximum Operating Pressure: 4 bar
Pressure Tested to Maximum: 4 bar
Gauges: 1
Clean Pressure Drop: 0.2 bar
Mini Mesh Sample: 1
Idea for bleeding vessel or using for fuel sampling
Element: Utilises one 1A surface water separation coalescer cartridge, permanent resin-coated stainless steel screen with 10 micron cellulose paper media

Bag Filter Vessel - 2” (50 mm) Ports
Bag Filter Vessel - 2” (50 mm) Ports

Bag Filter Vessel - 2” (50 mm) Ports

Description: iCerMax™ Bag Filter Vessel with guff bag insert

  • Highly effective in dealing with mass particle contamination in cost effective manner
  • Ideal pre-filtration vessel for bulk tank use
Part No: IXFG - BF
Maximum Flow Rate: 250 litres per min
Recommended Flow Rate: 200 litres per min
Micron Rating:-
• Single layer 1 micron
• Double layer 100/10 micron - standard fitment
• Triple layer 100/10/1 micron or 50/50/10 micron
Optional: 25 micron or 150 micron metal strainer as pre-filter before guff bag
Target ISO Cleanliness: ISO 18/16/13 or better
Ideal for high volume commercial cleanliness
Diesel Volume: 28 litres
Mass Volume: 57 kg
Mass Empty: 33 kg
Height: 1 250 mm
Width/Length: 350 mm x 310 mm
Port Size: 50 mm
Diesel Filter Vessel:-
Max Operating Pressure: 4 bar
Pressure Tested to Max: 4 bar
Gauges: 2
Clean Pressure Drop: 0.2 bar
Mini Mess: 1
Ideal for bleeding vessel or fuel sampling
Guff Bag: Utilises one double layer 100/10 micron guff bag - standard fitment

2 x Bag Filter Vessel Combo
2 x Bag Filter Vessel Combo

2 x Bag Filter Vessel Combo

Technical Data: Standard Unit

Description: iCerMax™ 2 x Bag Filter Vessels with guff bag inserts

  • Both vessels mounted on a skid
  • Highly effective in dealing with mass particle contamination in cost effective manner
  • Ideal pre-filtration vessel for bulk tank use
Part No: XFG-02 COMBO
Maximum Flow Rate: 400 litres per min
Recommended Flow Rate: 250 to 300 litres per min
Micron Rating:-
• Single layer 1 micron
• Double layer 100/10 micron - standard fitment
• Triple layer 100/10/1 micron or 50/50/10 micron
Optional:-
• iSo-SpecSure™ cartridge - sub micron - optional
• Also offer 25 micron or 150 micron metal strainer as pre-filter before guff bag - optional
Target ISO Cleanliness: ISO 18/16/13 or better
Ideal for high volume commercial cleanliness
Diesel Volume: 60 litres
Mass Volume: 129 kg
Mass Empty: 81 kg
Height: 1 420 mm
Width/Length: 350 x 1 000 mm
Port Size: 50 mm
Diesel Filter Vessel:-
Max Operating Pressure: 4 bar
Pressure Tested to Max: 4 bar
Gauges: 4
Clean Pressure Drop: 0.2 bar
Mini Mess: 4
Ideal for bleeding vessel or fuel sampling
Guff Bag: Standard fitment is double layer 100/10 micron guff bags

iSo-SpecSure™ Bag Filter Cartridge
iSo-SpecSure™ Bag Filter Cartridge

iSo-SpecSure™ Bag Filter Cartridge

Technical Data: Standard Unit

Description: iSo-SpecSure™ Bag Filter Cartridge has three different filtration mediums in one filter ensuring adherence to multi-depth filtration principles

Part No: IXFG - ISO BAG
Maximum Flow Rate: 250 litres per min
Recommended Flow Rate: 150 to 180 litres per min
Micron Rating:-
iSo-SpecSure™ Cartridge: 2 micron
Ideal for removing all forms of particle contamination
Target ISO Cleanliness: ISO 14/13/11 or better
Dry Weight: 4.5 kg
Top Flange O/D: 175 mm
Bottom Cartridge O/D: 150 mm
Clean Pressure Drop: 0.3 bar

iSo-SpecSure™ bag cartridge has a large surface area with a high filtration capacity and medium integrity

iSo-SpecSure™ bag cartridge consists of bag filter layers (various micron ratings), multi-depth synthetic layers (various micron ratings) and multi-internal structural supports and media support layers

iSo-SpecSure™ bag cartridge fits perfectly into our current bag filter vessel and can be used in conjunction with our bag filter vessel with either a double or a triple layer guff bag

Dimensions:-
Top Cap - open: O/D 175 mm, I/D 81 mm
Bottom Cap - closed: O/D 149 mm
Cartridge Length: 643 mm (includes flange/gasket)
Top Cap Flange Thickness: 1.5 mm
Top Cap Gasket Thickness: 3 mm
Top Cap Flange Width: 12.6 mm


1 into 2 Steel Manifold
1 into 2 Steel Manifold
1 into 2 Steel Manifold

1 into 2 Steel Manifold

Technical Data: Standard Unit

Description: iCerMax™ Steel Manifold with one 1 ½” inlet and two 1 ½” outlets

  • Manifold is 127 mm in diameter & manufactured from 3 mm thick EN10025 piping
  • Inlet & outlets manufactured from SABS62 wrought iron
Part No: IXMA-2X1M
Port Sizes:-
Inlet: One x 1 ½” inlet with BSP thread
Outlet: Two x 1 ½” outlet with BSP thread
Height: 140 mm
Width/Length: 260 mm x 460 mm
Mass Empty: 4.5 kg

Manifold can be securely bolted to the ground using rawl bolts & the 10 mm diameter holes in the brackets on each side of the manifold


1 into 4 Steel Manifold
1 into 4 Steel Manifold
1 into 4 Steel Manifold

1 into 4 Steel Manifold

Technical Data: Standard Unit

Description: iCerMax™ Steel Manifold with one 3” inlet and four 1 ½” outlets

Manifold is manufactured from 3 mm thick EN10025 piping with inlet & outlets manufactured from SABS62 wrought iron

Part No: IXMA-4X1M
Port Sizes:-
Inlet: One x 3” inlet with BSP thread
Outlet: Four x 1 ½” outlet with BSP thread
Height: 270 mm
Width/Length: 460 mm x 270 mm
Mass Empty: 6.1 kg

Manifold can be securely bolted to the ground using rawl bolts & the 10 mm diameter holes found in the brackets on each side of the manifold


Submit an Enquiry









Aereon
Brodie
Emco-Wheaton
Equiptank
Flare
Flotech
Hi-G-Tek
Hoffer Flow Controls
Icermax Logo
Jordan
Klaw
Perolo
Pollard Pumps
Posiwell
Saferack
Tim-Elektronik
Todo
Toptech
Trelleborg
VR Refiner

Copyright © 2018 Soliflo. All Rights Reserved. Group Companies: • Soliflo
